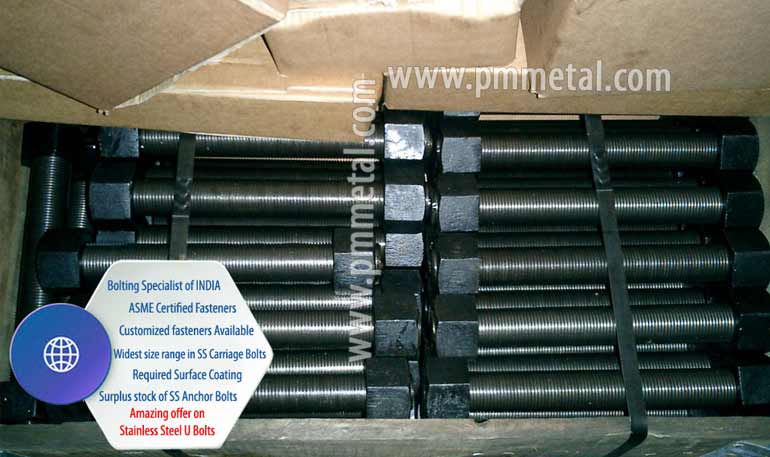

1.4980 Bolt

1.4980 Bolt

1.4980 Bolt



Size Ranges of SS 1.4980 Nuts


Size of Nuts
(mm)
Dia.
(mm)
Height
(mm)
Hex Nuts Nylock Nuts Jam Nuts
14 22 11 14 7
2 4 1.6 - 1.2
2.5 5 2 - 1.6
10 17 8 10 5
3 5.5 2.4 4 1.8
16 24 13 16 8
4 7 3.2 5 2.2
5 8 4 5 2.7
18 27 15 18.5 9
6 10 5 6 3.2
7 11 5.5 - 3.5
12 19 10 12 6
8 13 6.5 8 4
20 30 16 20 10

Chemical Structure of 1.4980 stainless steel fasteners


Compounds Content
Silicon 1.00 max
Manganese 2.00 max
Phosphorus, max 0.040 max
Carbon 0.08 max
Sulfur, max 0.030 max
Molybdenum 1.00-1.50
Nickel 24.0-27.0
Chromium 13.5-16.0
Vanadium 0.10-0.50
Tungsten -
Titanium 1.9-2.35
Aluminum 0.35 max
Boron 0.001-0.010

DIN EN 10269 Stud Bolts Mechanical Properties Analysis


Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa) 895 min
Elongation in 4D (El) 15
Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa) 585 min
Reduction 18

1.4980 Bolt Specifications, sizes and dimensions


Available Lengths From M02 upto M33
Specification ASTM A453/ ASME SA453
Sizes Range M1.0 – M100 | 3/6" upto 2"
In Form of:
  • Threading as per Gauge.
  • Hex
  • Round
  • Square
Threads METRIC, UNC, BSW, BSF, UNF or as required
